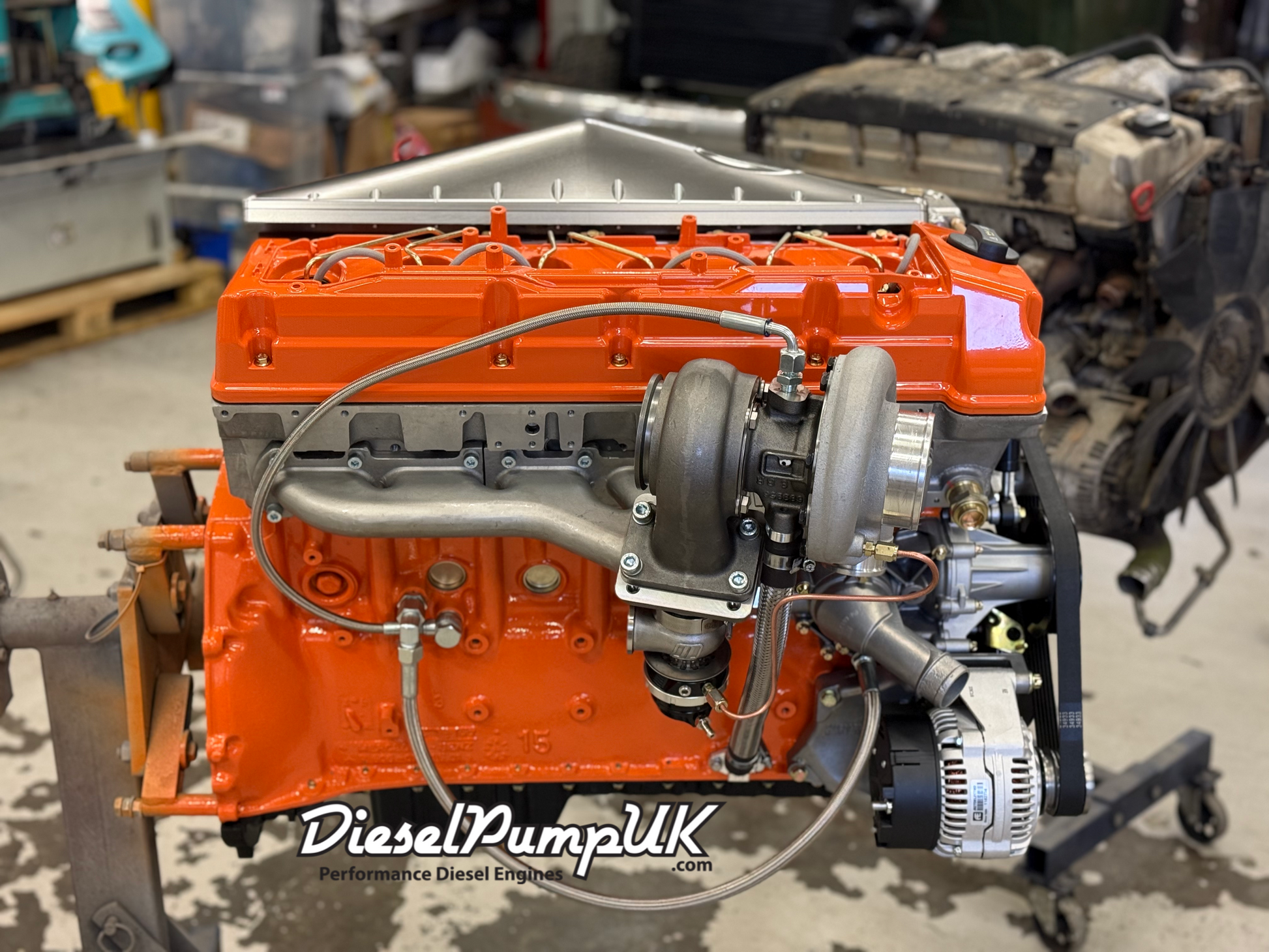

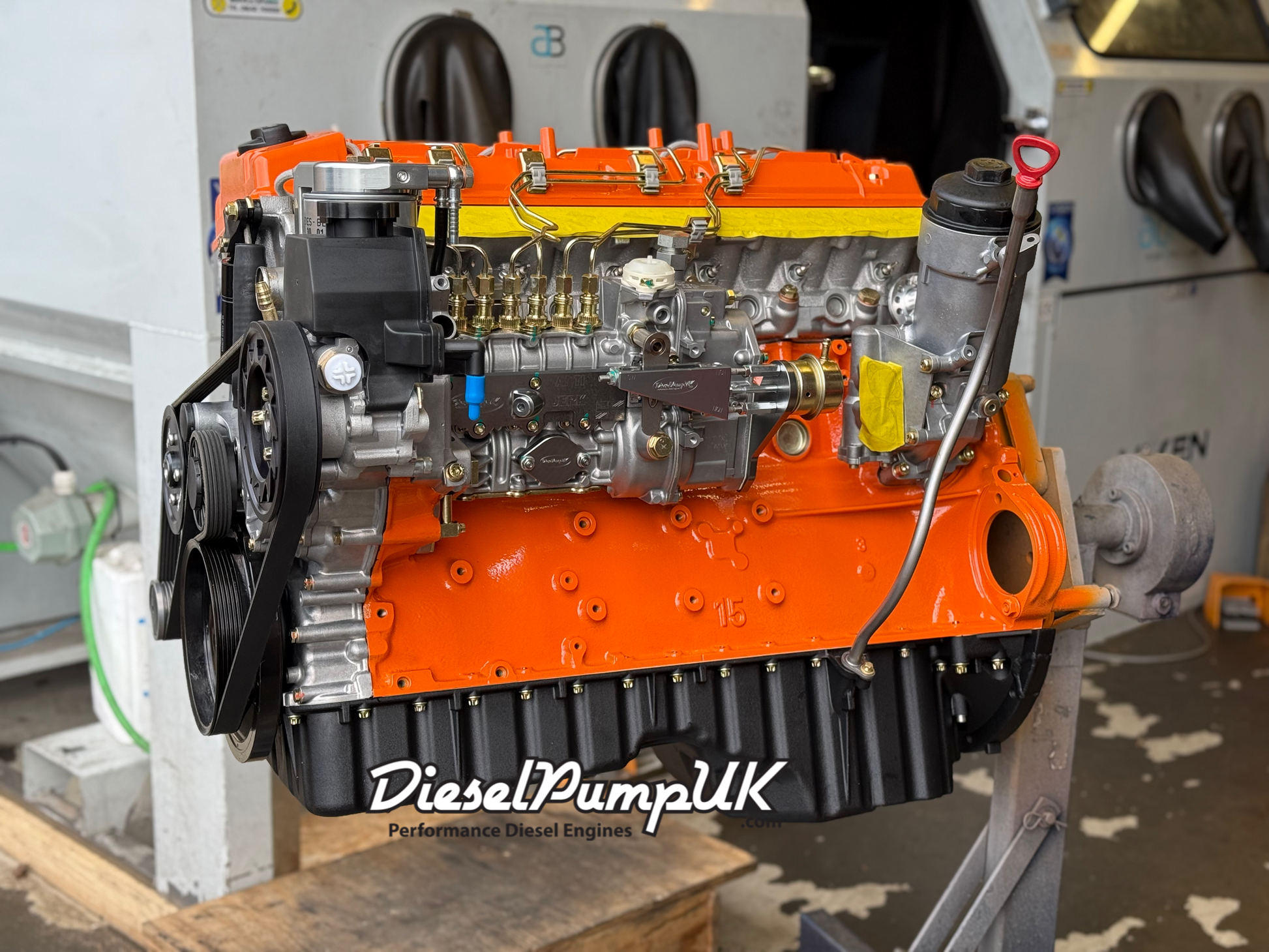

500bhp/600lbft OM606 Crate Engine - £22,000 GBP

Crate Engine Price - £22,000 + crate shipment (please add VAT if in England)

Further payment details at the bottom of description.

Advised power range 2200rpm-6500rpm

This engine is going to put a smile on your face, this thing is more than stock corvette LS power with half the fuel bill!

87mm bore, 84mm stroke from the factory (2996cc) and one of the finest diesel engine cylinder head air flow from the factory make this engine a recipe for reliable HP.

We ship these engines World Wide

Our 500bhp engine is very popular for hot-rod and custom builds, no ecu electronics, super simple install, pair it up with a nice mechanical transmission (th400, 4l80, t56 magnum and many more) and it’s a winning setup. Stick one in your 1950,s chevy pickup or a modern day sleeper!

31inches long from bellhousing to front pulley

2800rpm converter stall advised

If you wish for less than 500hp let us know we can de-tune this model also.

Our 500bhp engine include the following:

• Precision Machined Cylinder Head, with valves, seats, seals, performance springs
• Precision Machined Block, decked, bore, hone
• Precision Machined rotating assembly
• H-Beam Connecting Rods
• All new bearings throughout
• Upgraded fixing hardware
• All new critical engine fixing hardware (head bolts, main bolts etc)
• DieselPumpUK Mechanical Injection Pump - 500bhp 8.5mm with anti-jerk
• Quickspool Race Turbo Kit, stainless exhaust manifold, Borgwarner billet turbo, Turbosmart wastegate
• Billet CNC Inlet Manifold (Titanium grey anodised)
• Billet Fuel Filter Housing Assembly
• All aluminium components refurbished
• Custom pain, our popular colours include, grey/yellow/orange/red/green however we can offer any colour provided it is a solid non-metallic colour and you can provide a RAL number.
• 2 hours break-in carried out before shipment to ensure no leaks and perfect running condition
• Block cooling modifications
• Custom water pulley
• New ancillaries - water pump, starter motor, alternator, pas pump
• New timing chain assembly with guides
• Throttle cable assembly installed
• Front or rear bowl sump/pan options
• Glow plug loom and solenoid included
• Engine stop provision included
• Spare oil and fuel filters

INFORMATION WE NEED FROM YOU

- Crate engines all have a transmission adapter kit included Free of Charge, please browse our website to choose which transmission adapter best suits your needs

- What colour would you like your engine, our popular colours include, grey/yellow/orange/red/green however we can offer any colour provided it is a solid non-metallic colour and you can provide a RAL number

- Do you need a front or a rear bowl sump/oil pan

IMPORTANT INFORMATION FOR THE BUYER

- Our engines are custom built to your specification please allow a 30 week delivery time

- Our engines include a 1 year return to base warranty (we are responsible for any engine build related issues, we are not responsible for such items as overheat related damage or oil starvation)

• Engines are not shipped with any oil, we advise 5w40 fully synthetic depending on oil pan style 9-11 litres

How to proceed

To secure your crate engine build now click on link above to pay a non-refundable £1,000 deposit. Upon receipt we will contact you to confirm your individual requirements and provide a complete invoice including a customised shipping quotation.

We then ask for a 50% deposit to be made via bank transfer and the remaining 50% when the engine is ready to be shipped.
